Item No :
JNB048100-S-V1Order(MOQ) :
1Payment :
FOBProduct Origin :
Hefei Anhui ChinaColor :
BlackShipping Port :
Nanjing, Ningbo, Shanghai，Shenzhen，Guangzhou INQUIRE NOWLead Time :
7 DaysWeight :
48Kg

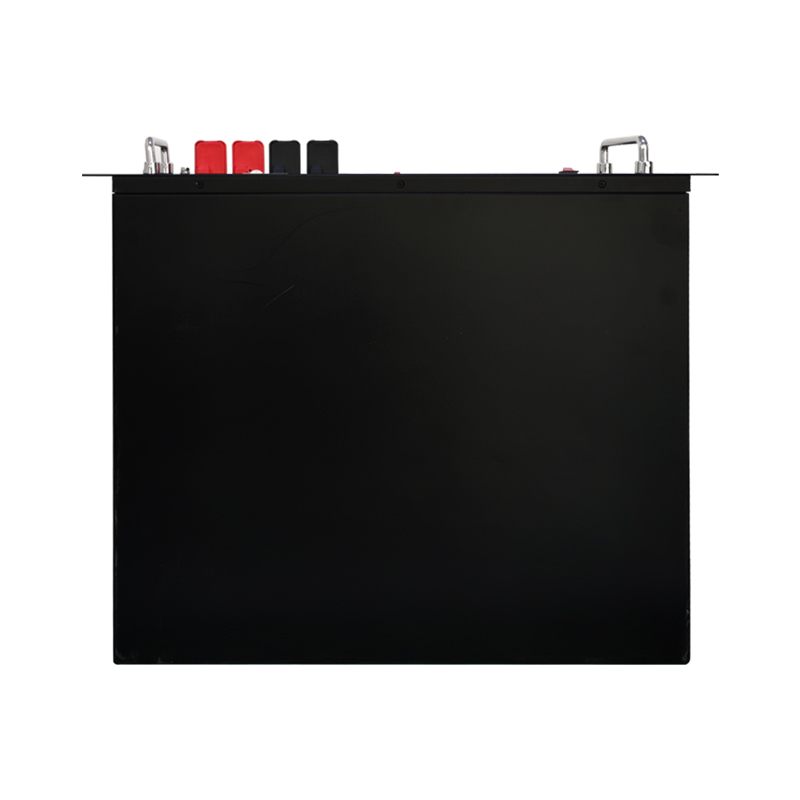

Rack Insert Battery for Energy Storage System
The 5.2kWh Rack Insert Battery features high-performance LiFePO4 technology, designed for seamless integration into rack-mounted systems. With its compact design, it offers reliable energy storage for off-grid and backup power applications. The battery boasts a nominal voltage of 51.2V and a robust build quality, ensuring long-lasting performance and safety. Suitable for both residential and commercial use, it's a reliable choice for energy storage needs.
Product Advantages
Application Scenario
off-grid and grid-connected photovoltaic energy storage systems for residential, commercial and industrial energy storage applications.
Product Parameters
| Model |
JNB048100-S-V1
|
| Rated capacity |
100Ah
|
| Rated voltage |
51.2V
|
| Rated energy |
5.2kWh
|
| Battery type |
LiFePO4
|
| Max. continuous charge current |
100A (1C）
|
| Max. continuous discharge current |
100A (1C）
|
| Voltage range |
40V-60V
|
| Operating temperature | Charge 0~45℃，discharge -25~55℃ |
| storage temperature | -20~60℃ |
| Box size |
600mm*485mm*167mm
|
| Weight |
48kg
|
|
Cooling method
|
Forced cooling
|
| Protecition level | IP21 |
| Functional protection | Undervoltage, overvoltage, overcurrent, temperature, short circuit |
| Installation method | Rack Insert |
| Cycle life |
>4000 times（80%DOD）, >7000 times（70%DOD）
|
|
Interface
|
RS485/CAN
|
| Elevation | ≤3000m |

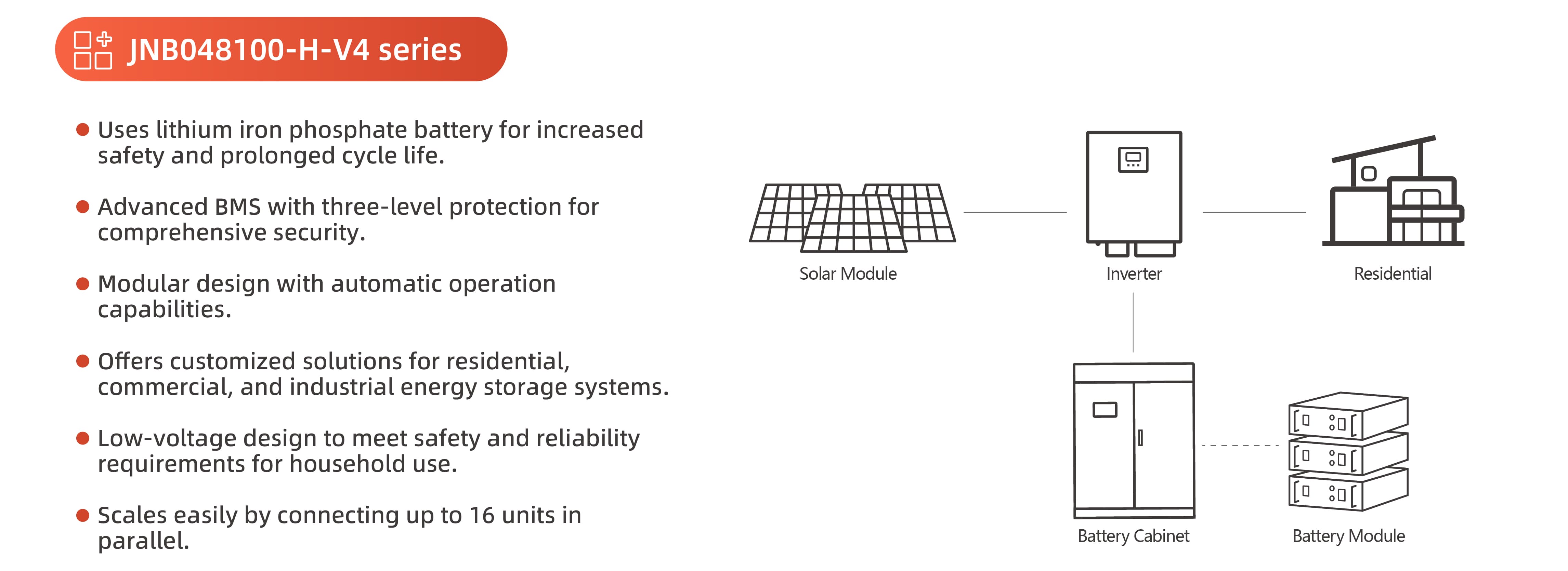

JNTECH Rack Insert Battery combines lithium iron phosphate cells, BMS, and temperature monitoring. It offers a superior alternative to lead-acid batteries and can communicate with various photovoltaic energy storage PCS.
This solar storage battery module combines lithium iron phosphate cells, BMS, and temperature monitoring. It offers a superior alternative to lead-acid batteries and can communicate with various photovoltaic energy storage PCS. It is widely utilized in off-grid and grid-connected photovoltaic energy storage systems, and multiple units can be connected in series for residential,commercial, and industrial energy storage applications.
Solar inverters are devices that convert the direct current (DC) generated by solar panels into alternating current (AC) which can be used by household or commercial appliances. They are an essential component of any solar energy system.
The 48V 5kVA Hybrid Inverter converts DC power produced by solar panels to AC power to provide electric energy for applications. MPPT charge controller charge the solar electricity into batteries. When solar energy is not enough for loads, or at night, the battery pack will be discharge to replenish energy for loads.
Portable power supply is a portable power supply device that integrates solar charging, lithium battery storage, DC output power supply and lighting. DC output power supply 5V and 12V, suitable for electrical equipment including lamps, fans, mobile phones, DC TVs, etc.
The 15kW off grid solar energy storage system for residential is an innovative and efficient way to power your home with renewable energy. It is designed to provide a reliable and sustainable source of electricity for homes that are not connected to the traditional power grid.
Portable Power Station With lithium battery is a mini solar system device that integrates solar charging, lithium battery storage, DC output power supply and lighting. DC output power supply 5V and 12V, suitable for electrical equipment including lamps, fans, mobile phones, DC TVs, etc.
