Product Details

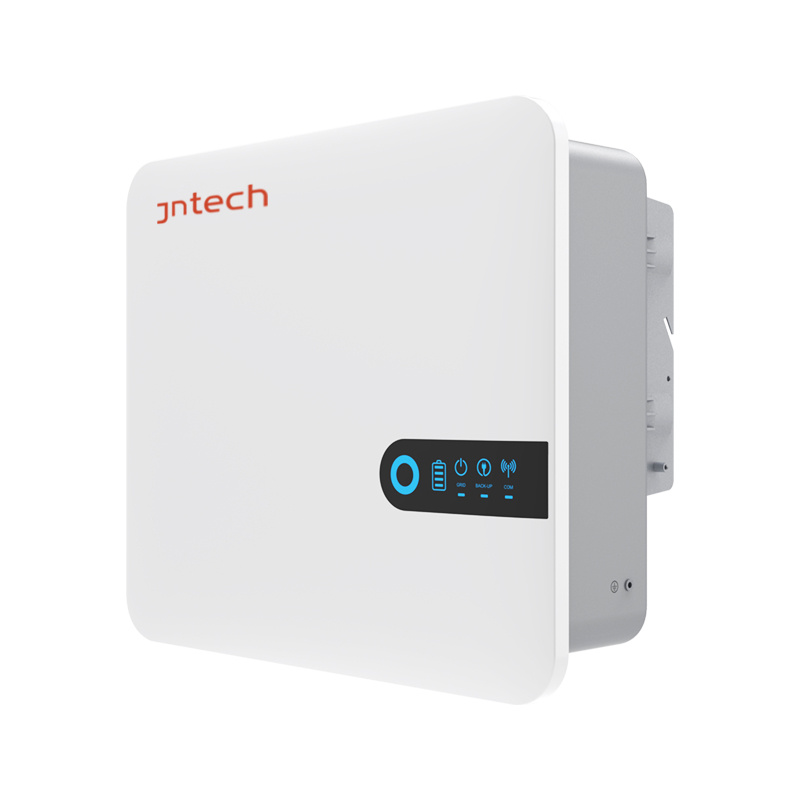

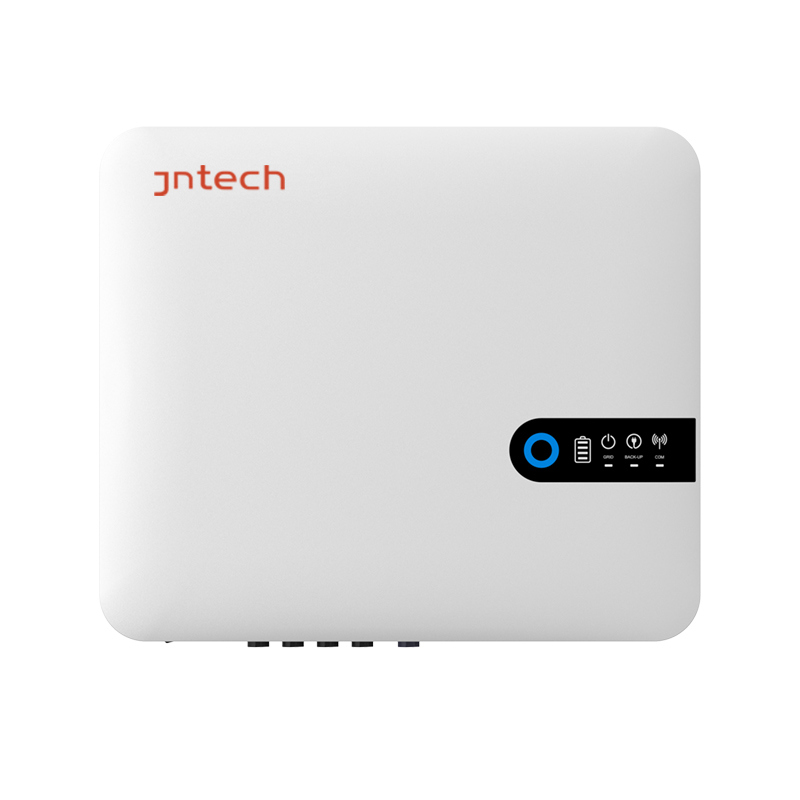

5-12kW Three-Phase High-Voltage Hybrid Inverter

5-12kW three-phase high-voltage hybrid inverter Designed for large-scale residential and commercial applications delivers unmatched performance and efficiency. With an output range spanning 5kW to 12kW, it seamlessly integrates solar, grid, and battery power to enhance energy self-sufficiency.

Featuring smart grid compatibility, it seamlessly integrates with utility grids and supports bi-directional power flow. The inverter's compact design and IP66 protection rating make it suitable for outdoor installations, while its intuitive control interface simplifies operation and maintenance.

The 5-12kW three-phase high-voltage hybrid inverter is the perfect solution for modern, reliable, and efficient energy systems.

Product Advantages

Product Parameters

Model	JNS5KRH	JNS6KRH	JNS8KRH	JNS10KRH	JNS12KRH
DC side (DC)
Maximum recommended component power	7500 Wp	9000 Wp	12000 Wp	15000 Wp	18000 Wp
Maximum input voltage	1000 V
Starting voltage	135 V
Rated input voltage	600 V
MPPT operating voltage range	135-900 V
Maximum input current of each MPPT	16 A / 16 A			16 A / 32 A
MPPT maximum short circuit current of each channel	20 A / 20 A			20 A / 40 A
MPPT quantity	2
Number of strings that can be connected to each MPPT	1/1			1
Power grid AC survey (AC)
Maximum input apparent power	10000 VA	12000 VA	16000 VA	20000 VA	24000 VA
Output rating	5000 W	6000 W	8000 W	10000 W	12000 W
Maximum output apparent power	5500 VA	6600 VA	8800 VA	11000 VA	13200 VA
Rated output voltage	3LN/PE,220 / 380 V,230/400 V,240 / 415 V
Input/output voltage range	180-300V / 200-253 V
Rated output voltage frequency	50 / 60 Hz
Input/output voltage frequency range	(45-55);(55-65)Hz
Rated output current	72 A	8.7 A	11.6 A	14.5 A	174 A
Maximum input/output current	15.2 A / 9.8 A	18.2 A / 11.8 A	24.2 A / 15.8 A	30.3 A / 19.7 A	36.4 A / 23.6 A
Power factor	>0.99
Power factor range	0.8 leading ..08 lagging
Maximum total harmonic distortion	<3%(rated power)
Grid connection mode	3L / N / PE
Business Network Output (AC)
Rated output power	5000 W	6000 W	8000 W	10000 W	12000 W
Maximum output apparent power	5500 VA	6600 VA	8800 VA	11000 VA	13200 VA
Rated output voltage	3LN/PE,220/380 V,230/400 V,240/415 V
Output voltage range	200-240V
Rated output frequency	50/60 Hz
Rated output current	7.2 A	8.7 A	11.6 A	14.5 A	17.4 A
Maximum output current	9.8 A	11.8 A	15.8 A	19.7 A	23.6 A
Maximum total harmonic distortion THD	<3% (linear load)
And off-grid switching time	<10 ms
Battery (DC)
Rated output power	5000 W	6000 W	8000 W	10000 W	12000 W
Maximum charge/discharge power	12500 W / 15500 W	12500 W / 16600 W	12500 W / 8800 W	12500 W / 1000 W	12500 W / 13200 W
Battery voltage range	135-800 V
Maximum charge/discharge current	25 A / 25 A
Communication interface	CAN / RS485
Efficiency
Maximum efficiency	97.6%
MPPT efficiency	100%
European efficiency	97.0%
Protection
Integrated protection	Anti-reverse current protection; DC reverse connection protection; input DC switch; insulation impedance detection; leakage current detection; output short circuit protection; output overcurrent protection; grid monitoring; island protection; residual current detection; battery reverse connection protection; off-grid overload.
Surge protection	DC Type L, AC Typell
Display and communication
Reveal	LED+APP
Communication mode	Standard: RS485 / USB, optional 4G / WiF
Conventional parameter
Size (WHD)	516×442×222 mm
Weight (bare metal)	24 kg
Operating temperature range	-30~60℃
Noise	<35 dB
Heat dissipation mode	Intelligent air cooling
Installation mode	wall-mounted
Class of protection	P66
Quality guarantee	10 years
Certification standard
Grid connection standard	G98 / G99, EN50549 / 50438, CEI0-21, AS 4777.2, VDE 4105 / 0126, RD16991661 / 413 / 244 / 2019, UNE 206006 / 206007, NTS TypeA, UNE 217002 / 217001
Safety standard	EN / IEC 62109-1 / 2
Other standards	EN / IEC61000-6-1 / 2 / 3 / 4
