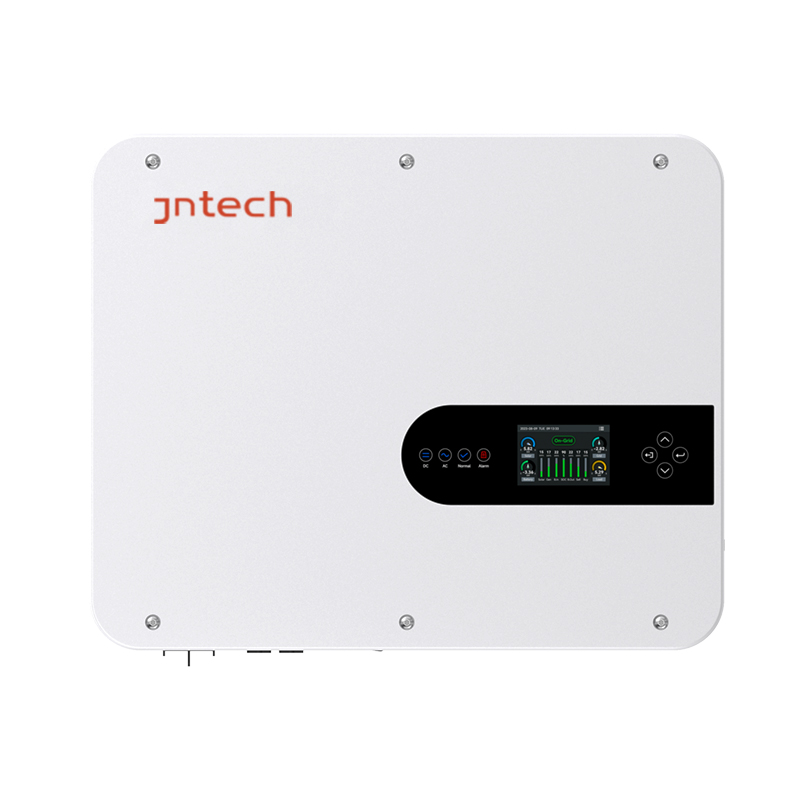

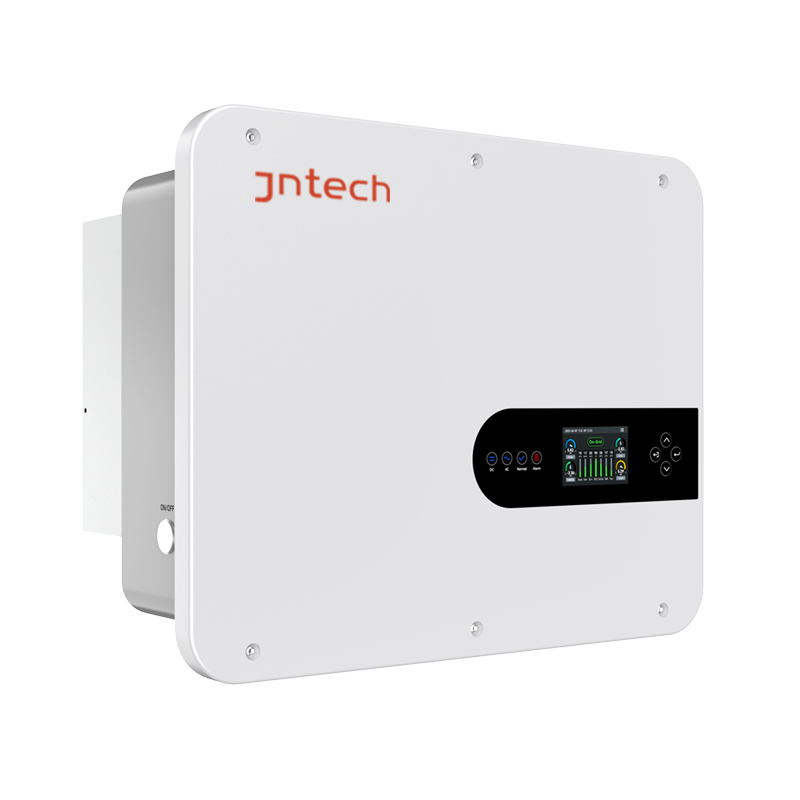

JNS3.6-6KLV Single-phase low-voltage hybrid inverter

JNS3.6-6KLV Single-phase low-voltage hybrid inverter

The 3.6-6kW single-phase low-voltage hybrid inverter is designed for versatile energy applications. It boasts a power output range of 3.6kW to 6kW, ideal for both residential and small-scale commercial use. With its advanced technology, it seamlessly integrates solar, grid, and battery power, enhancing energy independence and reliability. The inverter supports multiple battery types, ensuring compatibility with various systems. With its high efficiency and comprehensive protection features, this inverter is a reliable choice for modern energy solutions.

Item No :
JNS3.6KLV/JNS5KLV/JNS6KLV
Order(MOQ) :
1
Payment :
FOB
Product Origin :
Hefei Anhui China
Color :
write
Shipping Port :
Nanjing, Ningbo, Shanghai，Shenzhen，Guangzhou
Lead Time :
7days

Inquire Now

Product categories

New Products

Product Details

3.6-6kW Single-phase low-voltage hybrid inverter

The 3.6-6kW single-phase low-voltage hybrid inverter is the ultimate solution for residential and small-scale commercial energy needs. This inverter seamlessly blends solar, grid, and battery power, providing a reliable and efficient energy system.

It is designed for flexibility and offers a power output range of 3.6kW to 6kW, suitable for various applications. With its advanced maximum power point tracking (MPPT) technology, it maximizes the energy harvest from your solar panels, ensuring optimal performance.

The inverter boasts an intuitive user interface and remote monitoring capabilities, allowing easy operation and maintenance. Its low-voltage compatibility makes it perfect for residential installations, while its durable construction ensures long-lasting performance.

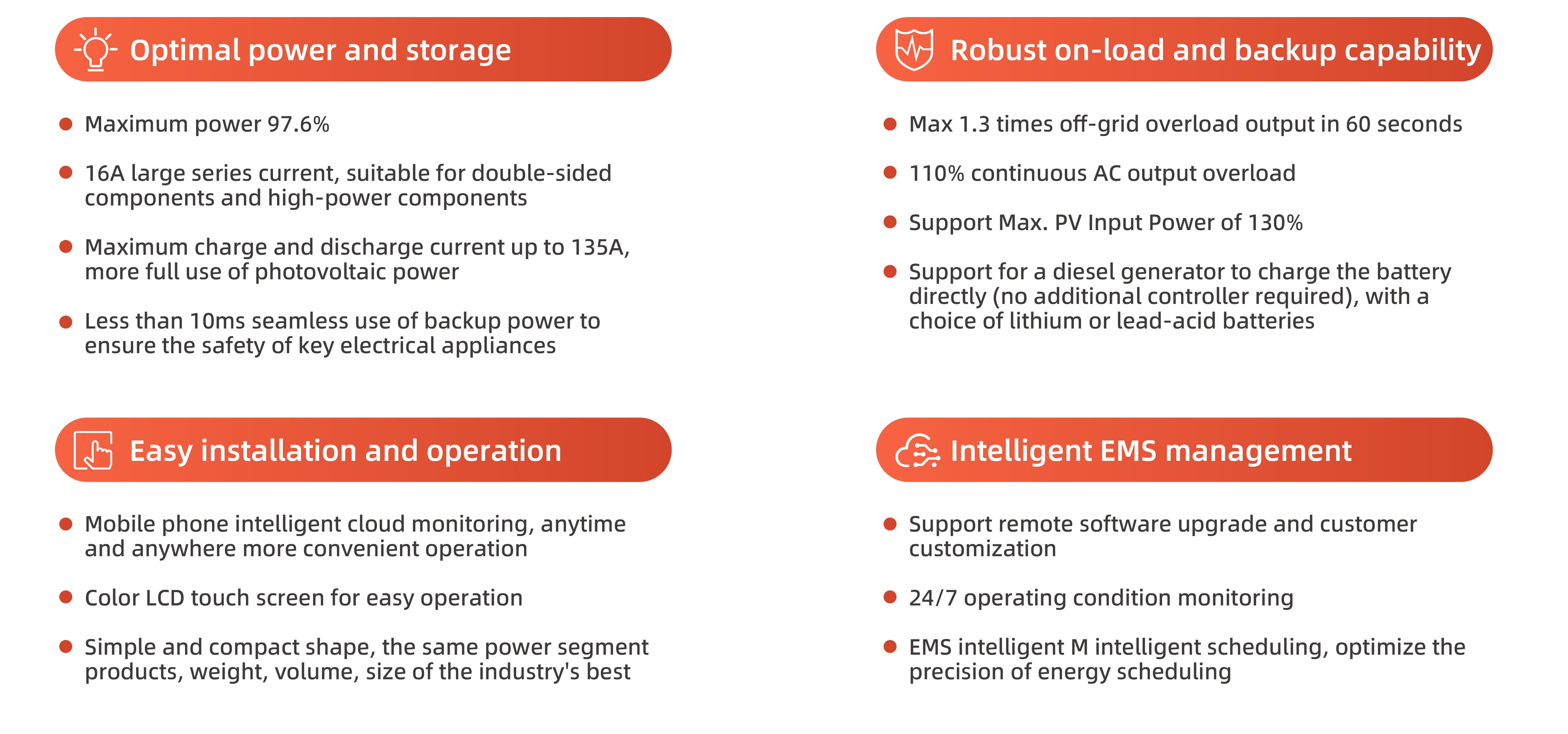

Product Advantages

Product Parameters

MODEL	JNS3.6KLV	JNS5KLV	JNS6KLV
DC side (DC)
Maximum recommended component power	4680 Wp	6500 Wp	7800 Wp
Maximum input voltage	500 V
Starting voltage	125 V
Rated input voltage	370 V
MPPT operating voltage range	150-430 V
Maximum input current of each MPPT	16 A
MPPT maximum short circuit current of each channel	20 A
MPPT quantity	2
Number of strings that can be connected to each MPPT	1
Power grid AC survey (AC)
Maximum input apparent power	7590 VA	7590 VA	9200 VA
Output rating	3600 W	5000 W	6000 W
Maximum output apparent power	3960 VA	5500 VA	6600 VA
Rated output voltage	L/N/PE,220/230/240 V
Input/output voltage range	180-300 V
Rated output voltage frequency	50/60 Hz
Input/output voltage frequency range	(45-55)/(55-65)Hz
Rated output current	15.7 A	21.7 A	26.1 A
Maximum input/output current	33/17.2 A	33/23.9 A	40/28.7 A
Power factor	>0.99
Power factor range	0.8 ahead...0.8 behind
Maximum total harmonic distortion	<3%(rated power)
Grid connection mode	L/N/PE
Business Network Output (AC)
Rated output power	3600 W	5000W	6000 W
Maximum output apparent power	3960 VA	5500 VA	6600 VA
Rated output voltage	L/N/PE,220/230/240 V
Output voltage range	200-240 V
Rated output frequency	50/60 Hz
Rated output current	15.7 A	21.7 A	26.1 A
Maximum output current	17.2 A	23.9 A	28.7 A
Maximum total harmonic distortion THD	<3% (linear load)
And off-grid switching time	<10ms
Battery (DC)
Rated output power	3600 W	5000 W	6000 W
Maximum charge/discharge power	3600W	5000W	6000 W
Rated voltage	48 V
Battery voltage range	40-60V
Maximum charge/discharge current	90 A	120 A	135 A
Communication interface	CAN/RS485
Efficiency
Maximum efficiency	97.6%
MPPT efficiency	99.9%
European efficiency	96.5%
Protection
Integrated protection	Anti-reverse current protection; DC reverse connection protection; input DC switch; insulation impedance detection; GFCl leakage current detection; output short circuit protection; output overcurrent protection; grid monitoring; island protection; residual current detection; off-grid overload.
Surge protection	DC Typell,AC Type ll
Display and communication
Reveal	LCD+LED+APP
Communication mode	RS485, 4G (optional), WiFi (optional)
Conventional parameter
Size (WHD)	580x330x232 mm
Weight (bare metal)	20.5 kg
Operating temperature range	-25~60℃(derating above 45℃)
Noise	<35 dB
Heat dissipation mode	Intelligent air cooling
Installation mode	Wall-mounted
Class of protection	IP65
Quality guarantee	5 years
Certification standard
Grid connection standard	IEC 62116/61727,NRS 097-2-1,EN 50549/50438,C 10/11,CEI 0-21,AS 4777.2,UNE 206006/206007, VDE 4105,RD1699/661/413/244/2019,NTS Type A,UNE 217002/217001
Safety standard	EN/IEC 62109-1/2
Other standards	EN/IEC 61000-6-1/3,IEC 60068,IEC 61683
