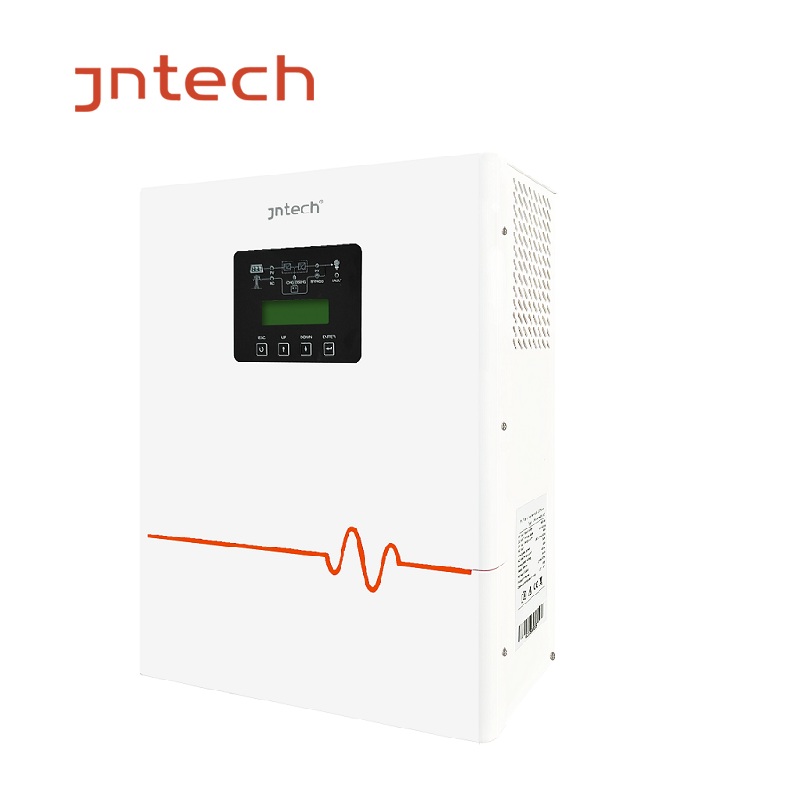

JNF1K2~5KHF-X-V1 Single-Phase Hybrid Inverter

JNF1K2~5KHF-X-V1 Single-Phase Hybrid Inverter

For eco-conscious homes, our compact single-phase hybrid inverter integrates seamlessly. It powers your essentials during outages & optimizes solar energy use. With smart battery management, it ensures clean, reliable backup. Perfect for residential use, it's efficient & easy to install. Green living, simplified.

Item No :
JNF1K2HF-X-V1/JNF3KHF-X-V1/JNF5KHF-X-V1
Order(MOQ) :
1
Payment :
FOB
Product Origin :
Hefei Anhui China
Color :
write
Shipping Port :
Nanjing, Ningbo, Shanghai，Shenzhen，Guangzhou
Lead Time :
7days

Inquire Now

Product categories

New Products

Product Details

1.2-5kW Single-phase hybrid inverter

Designed for modern homes, it seamlessly integrates solar power with backup battery storage, ensuring a continuous power supply even during grid outages. With advanced MPPT technology, it maximizes solar energy harvest and minimizes energy loss. Its user-friendly interface and compact design make installation and maintenance a breeze. Suitable for a wide range of residential applications, this inverter is the key to a sustainable and self-sufficient lifestyle.

Product Advantages

Product Parameters

Model	JNF1K2HF-X-V1	JNF3KHF-X-V1	JNF5KHF-X-V1
AC INPUT
Rated Voltage	208/220/230/240Va.c.,L+N+PE
Rated Freguency	50 Hz/60 Hz
Current(Maximum Continuous)	10 A a.c.	20 A a.c.	40 A a.c.
INVERTER OUTPUT
Rated Power	1.2 kVA	3.6 kVA	5 kVA
Rated Voltage	208/220/230/240Va.c.,L+N+PE
PowerFactor	1
Wave Form	Pure Sine Wave
Switch Time	<10 ms (Typical)
Inverter Efficiency(Peak)	90.5%@12Vd.c.	>92%	>94%
Current(Maximum Continuous)	10 A a.c.	15.6 Aa.c.	22.7 A a.c.
Maximum Output Overcurrent Protection	102%～110%1min/110%～130%10s/130%～150%3s/150%0.2s
BATTERY
Battery Type	Lithium/Lead-acid
Rated Battery Voltage	12Vd.c.	24Vd.c.	48Vd.c.
BatteryVoltage Range	10.8-15Vd.c.	21～30.2Vd.c.	42～60Vd.c.
Max.ChargeCurrent	120 A d.c.	100 A d.c.	80 A d.c.
PV INPUT
No.of MPPT Tracker /Strings	1/1
Max.PVArray Power	1 kW	5 kW	6 kW
Max.DC Voltage	125Vd.c.	500Vd.c.	500Vd.c.
MPPT Voltage Range	20~100Vd.c.	40～450Vd.c.	120～430Vd.c.
Start-up Voltage	20V d.c.	60Vd.c.	120Vd.c.
MPPT Maximum Charge Current	60 A d.c.	100 A d.c.	80 A d.c.
Max.Input Current	14 A d.c.	18A d.c.	18A d.c
Isc PV(Absolute Maximum)	16Ad.c.	22Ad.c.	22Ad.c.
PROTECTION & FEATURE
Parallel Function	No	No	Yes(up to 6pcs,optional)
Protection Degree	IP20,Indoor only
Certifications	CE(IEC62109-1),EN61000 NRS
Other Protection	Overload,Over temperature,Short circuit
GENERAL PARAMETER
Storage Temperature	-10℃~+60℃
Operating Temperature	-10℃~+50℃
Humidity	5%～95%(Non-condensing)
Operating Altitude	4000m(>1000 m Derating)
Noise	<50 dB
Machine Dimensions (WHD)	33022890 mm	335470125 mm	335470125 mm
MachineWeight/N.W.	3.2 kg	8.1kg	8.6 kg
MachineWeight/N.W.	3.2 kg	8.1kg	8.6 kg
DISPLAY AND COMMUNICATION
DISPLAY AND COMMUNICATION
Display	LCD Display (Display Running Mode,Loads/Input/Output etc.)
Display	LCD Display (Display Running Mode,Loads/Input/Output etc.)
Nterface	RS485/CAN/Dry Contact/WiFi (Optional)
Nterface	RS485/CAN/Dry Contact/WiFi (Optional)

Hot Tags : Residential Single-Phase Hybrid Inverter Single-Phase Hybrid Inverter 1.2 -5kVA Single-Phase Hybrid Inverter

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

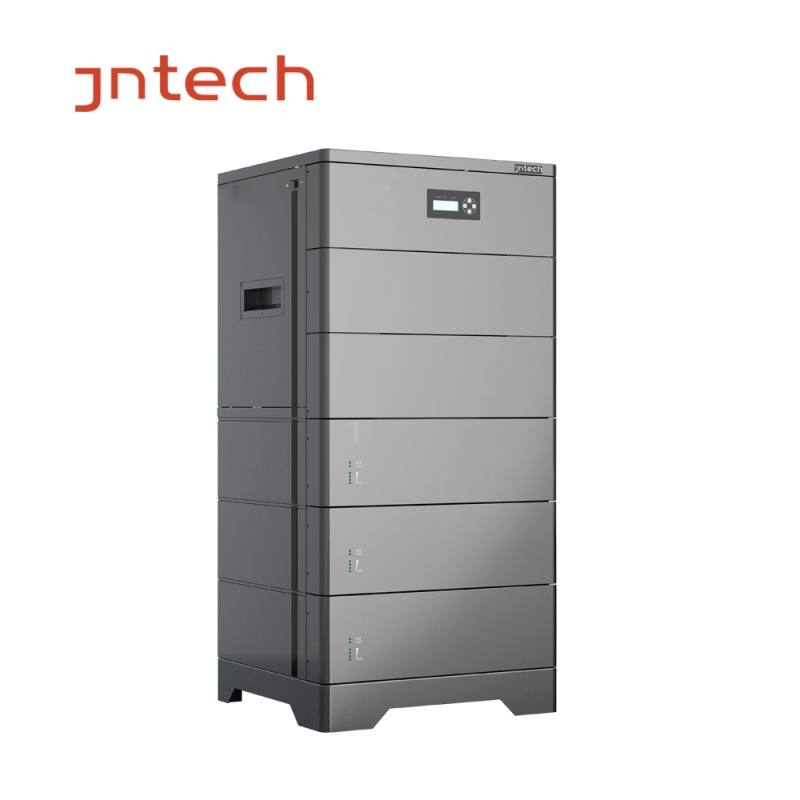

Rack Insert Battery for Energy Storage System

JNTECH Rack Insert Battery combines lithium iron phosphate cells, BMS, and temperature monitoring. It offers a superior alternative to lead-acid batteries and can communicate with various photovoltaic energy storage PCS.

Solar Energy Storage Battery Lithium Iron Phosphates Cells

This solar storage battery module combines lithium iron phosphate cells, BMS, and temperature monitoring. It offers a superior alternative to lead-acid batteries and can communicate with various photovoltaic energy storage PCS. It is widely utilized in off-grid and grid-connected photovoltaic energy storage systems, and multiple units can be connected in series for residential,commercial, and industrial energy storage applications.

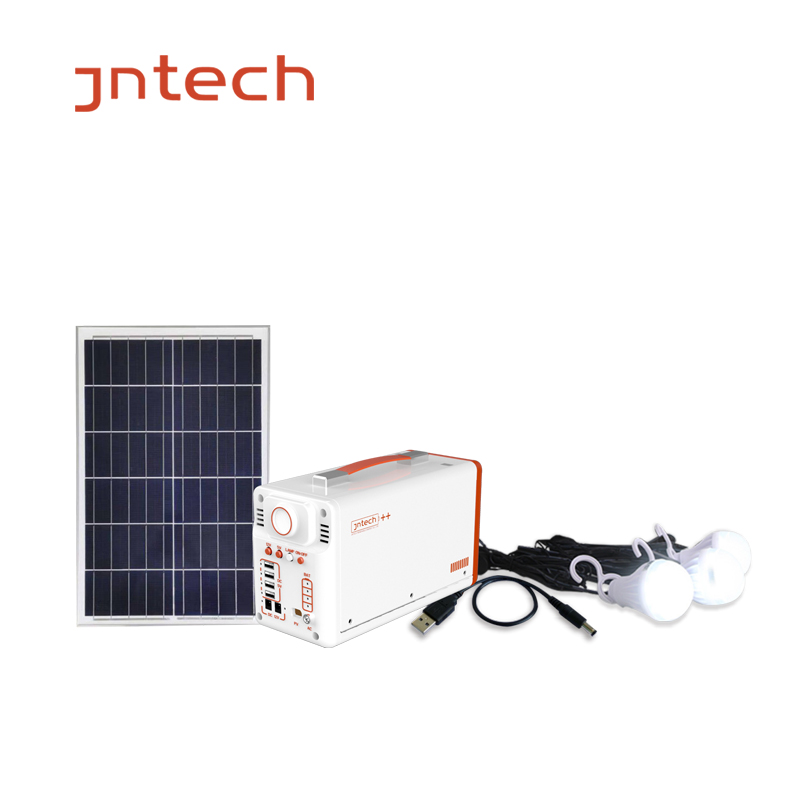

Portable Power Supply 12V Safe Voltage

Portable power supply is a portable power supply device that integrates solar charging, lithium battery storage, DC output power supply and lighting. DC output power supply 5V and 12V, suitable for electrical equipment including lamps, fans, mobile phones, DC TVs, etc.

5KW Residential Solar Energy Storage System

15kW Off Grid Solar Energy Storage System For Residential

The 15kW off grid solar energy storage system for residential is an innovative and efficient way to power your home with renewable energy. It is designed to provide a reliable and sustainable source of electricity for homes that are not connected to the traditional power grid.

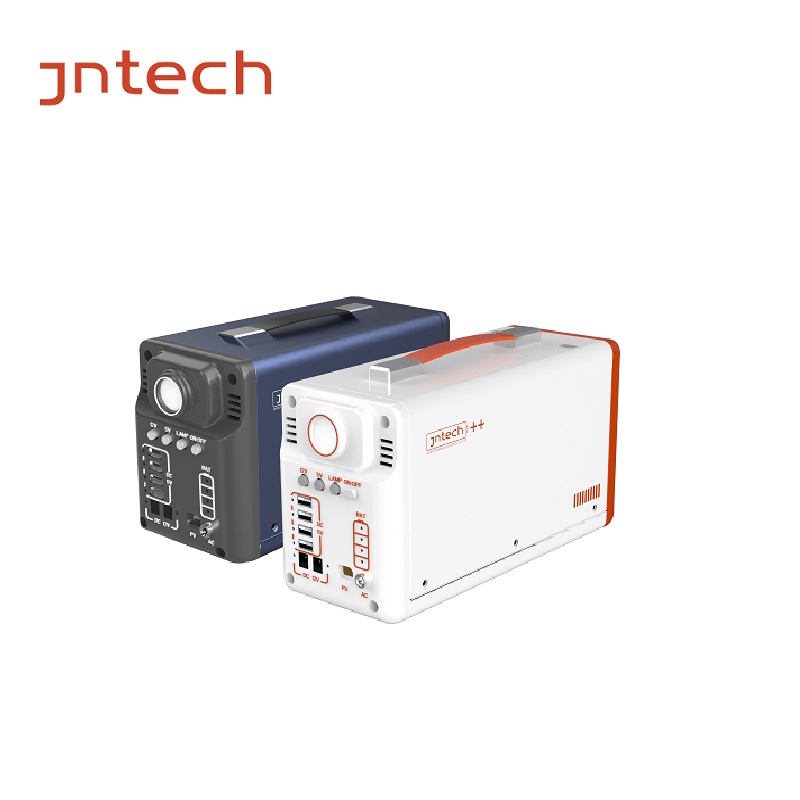

Portable Power Station With Lithium Battery
