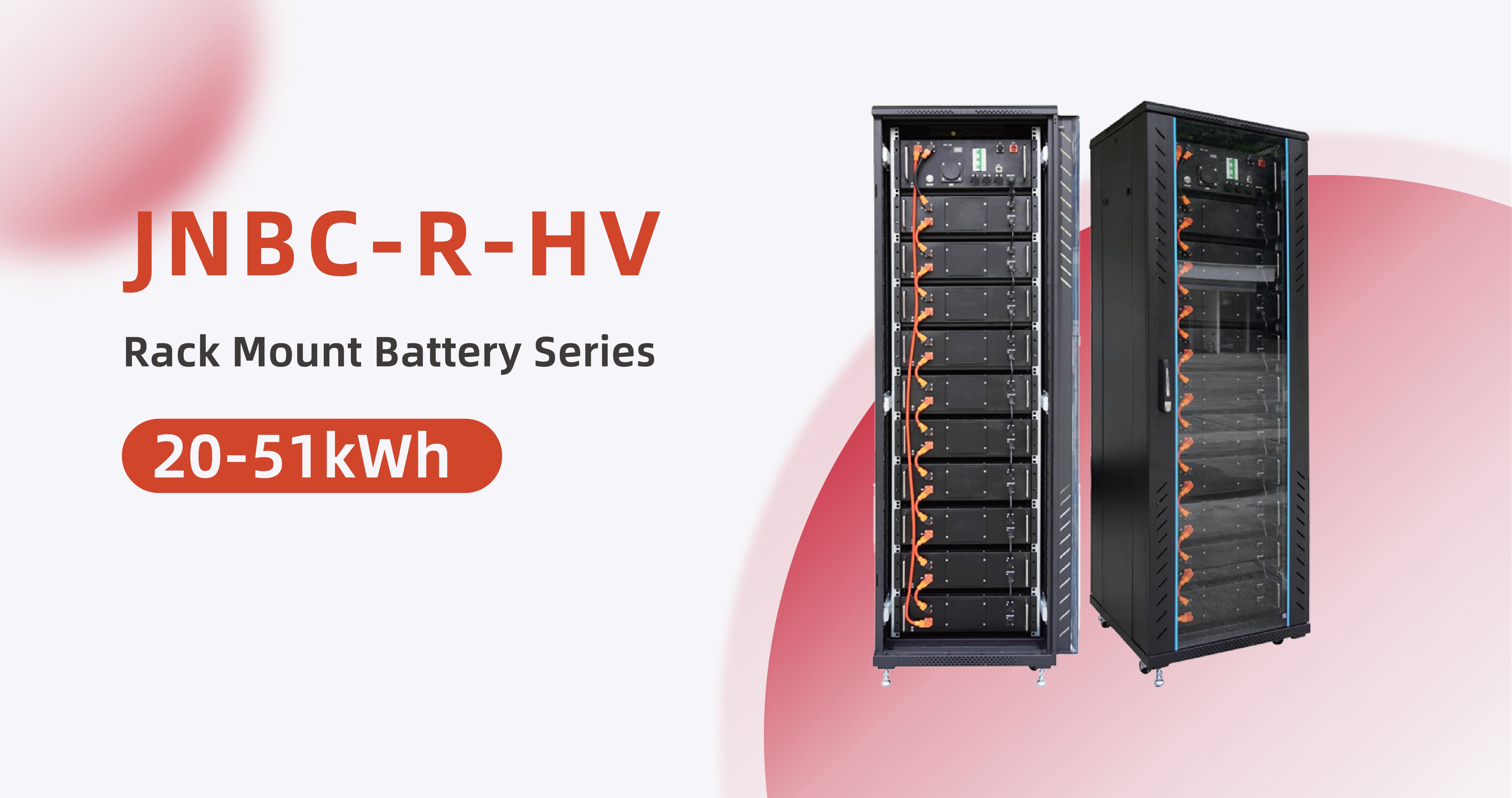

JNBC-R-HV Rack Mount Battery

A compact, high-performance energy storage system tailored for data centers, telecom, & industrial settings. Its modular design allows seamless integration into 20" racks, maximizing space utilization. Equipped with advanced BMS for precise monitoring & control, ensuring safe, efficient charging/discharging. Scalable to meet evolving power demands, this reliable solution keeps your critical operations running smoothly.

Item No :
JNBC-R-HV-20/JNBC-R-HV-25/JNBC-R-HV-30/JNBC-R-HV-35/JNBC-R-HV-40/JNBC-R-HV-46/JNBC-R-HV-51
Order(MOQ) :
1
Payment :
FOB
Product Origin :
Hefei Anhui China
Color :
write
Shipping Port :
Nanjing, Ningbo, Shanghai，Shenzhen，Guangzhou
Lead Time :
7days

Inquire Now

Product categories

New Products

Product Details

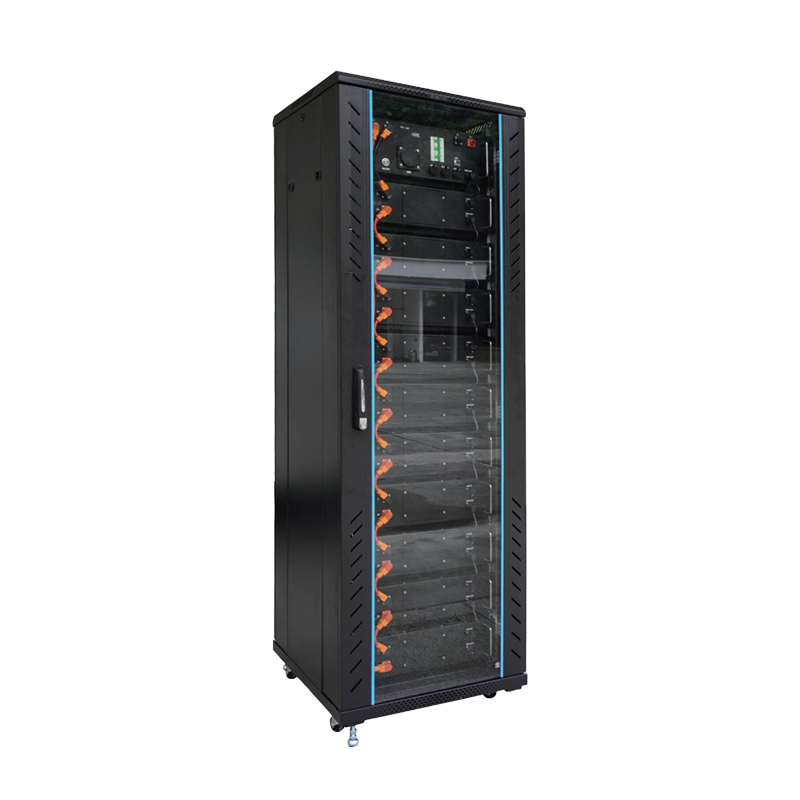

20-51kWh Rack Mount Battery

The rack-mounted battery system is primarily comprised of the following components:

Battery Modules:

These consist of multiple individual lithium-ion battery cells, with each module equipped with an independent Battery Management System (BMS). The BMS is responsible for monitoring and controlling the status of the battery, ensuring optimal performance.

Rack Structure:

Adopting standardized rack specifications (such as the 19-inch rack standard), the rack structure serves to securely mount and protect the battery modules. This design facilitates easy installation and expansion, making the system adaptable to various needs.

Electrical Connections:

Comprising cables, busbars, and other components, the electrical connections enable seamless power transmission between battery modules. They ensure efficient energy flow and reliability of the entire system.

Control System:

In addition to the BMS, the control system also incorporates an Energy Management System (EMS) and other components. This comprehensive system oversees and regulates the operation of the entire energy storage system, optimizing charging and discharging strategies to enhance overall system efficiency and reliability.

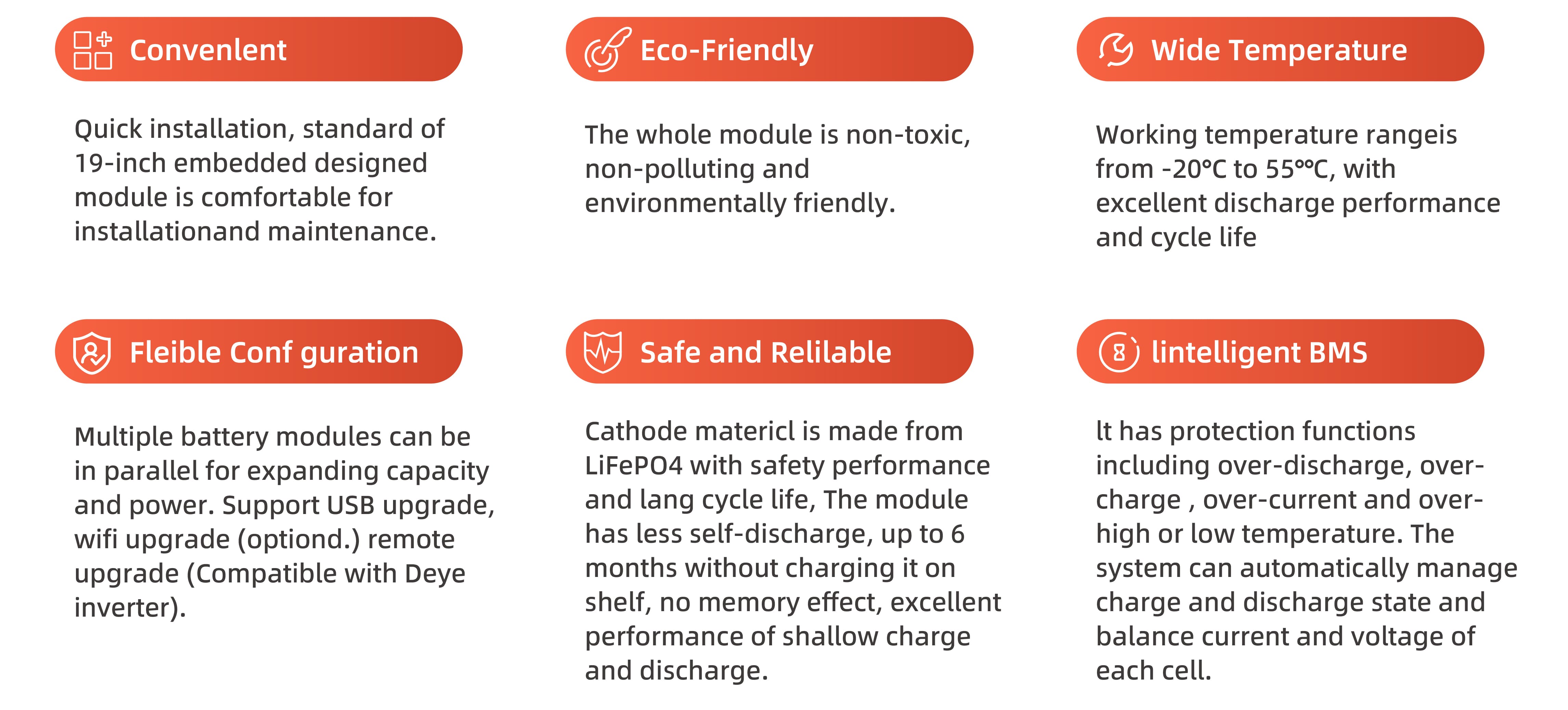

Product Advantages

Product Parameters

MODEL		JNBC-R-HV-20	JNBC-R-HV-25	JNBC-R-HV-30	JNBC-R-HV-35	JNBC-R-HV-40	JNBC-R-HV-46	JNBC-R-HV-51
Cell chemistry		LiFePO4
Module energy(kWh)		5.12
Module nominal voltage(V)		51.2
Modulc capacity(Ah)		100
Cell model/Configuration		3.2V00Ah/64S1P	3.2V00Ah/80SIP	3.2V00Ah/96SIP	3.2V100Ah/112SIP	3.2V100Ah/128SIP	3.2V00Ah/144SIP	3.2V00Ah/160SIP
System nominal voltago(V)		204.8	256	307.2	358.4	409.6	460.8	512
System operating voltage(V)		185.6~227.2	232~284	278.4~340.8	324.8~397.6	371.2~454.4	417.6~511.2	464~568
System energy(kWh)		20.48	25.6	30.72	35.84	40.96	46.08	51.2
Charge/ Discharge Current(A)	Rccommend	50
	Max	100
Working temperaturo		Charge:0℃~50℃;DisCharge:-20℃~55℃
Communication port		CAN2.0/RS485/WIFI
Humidity		5~85%RH Humidity
Altitudo		≤2000 m
IP rating of cnclosurc		IP20
Dimension WDH(mm)		538492791	538492941	5384921091	5384921241	5384921391	538492541	5384921691
Weight approximate(kg)		195	240	285	330	375	420	465
Installation locationStorage		Rack Mounting
Storage temperature(℃)		0℃~35℃
Recommend depth of discharge		90%
Cycle life		25±2℃,0.5C/0.5C,EOL70%≥6000
