Product Details

5kw solar inverter

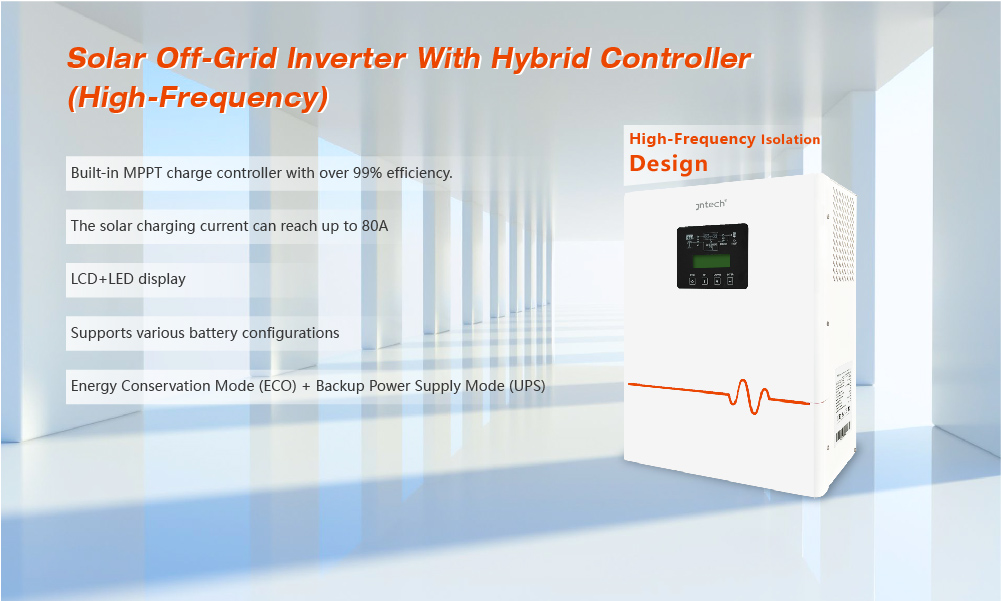

48V 5KW Hybrid Solar Inverter For Home

1.Pure sine wave solar hybrid inverter;

2.AC input source is compatible with power grid and diesel engine, intelligent control;
3.Advanced energy management system, which can adapt to different application scenarios;
4.There are power saving mode (ECO) and backup power supply (UPS) mode;
5.The switching time between bypass and inverter is less than 10ms, so as to realize fast switching;
6.Wide range of photovoltaic input voltage;
7.Built in MPPT charging controller, MPPT efficiency is more than 99%;
8.The maximum photovoltaic charging current is 80A, and the utilization rate of photovoltaic is higher;
9.The charging current can be set to protect the battery and extend the battery service life;
10.The battery is equipped in various ways, and colloidal or lithium batteries are optional;
11.The intelligent speed regulation of the cooling fan in the product can extend the service life of the fan.

Model	JNF5KHF48V-V1
PV input
Max. input DC voltage	480Vdc
Recommended input power	7000W
MPPT working voltage range	150~450Vdc
Battery
Rated voltage	48Vdc
Max. charging current	80A
Max. charging efficiency	≥97%
Battery	Gel/lithium
AC input and bypass output
Voltage and frequency	230Vac±20%,50/60Hz (±3%)
Max. charging current	60A
Switching time	≤10ms
Inverter output
Rated output capacity	5000VA
Peak output capacity	15000VA
Rated output power (linear load)	5000W
Output voltage	220Vac OR 230Vac
Rated frequency	50/60Hz (±3%)
Standby loss	≤10W
Max.efficiency	93%
Wave form	sine wave
Total harmonic distortion	<3%
Overload	5s@≥130% load;10s@ 105%～130% load
Machine parameters
Size(W/H/D)	315mm430mm120mm
Weight	10Kg
Other parameters
Protection level	IP21
Noise	<60dB
Cooling method	Forced cooling
Working temperature	-20～+50℃
Storage temperature	-25～+70℃
Display mode	LCD+LED
Communication interface	RS485
Altitude	2000m(>2000m derating operate)
