26-43kW Solar Battery Charger High Voltage

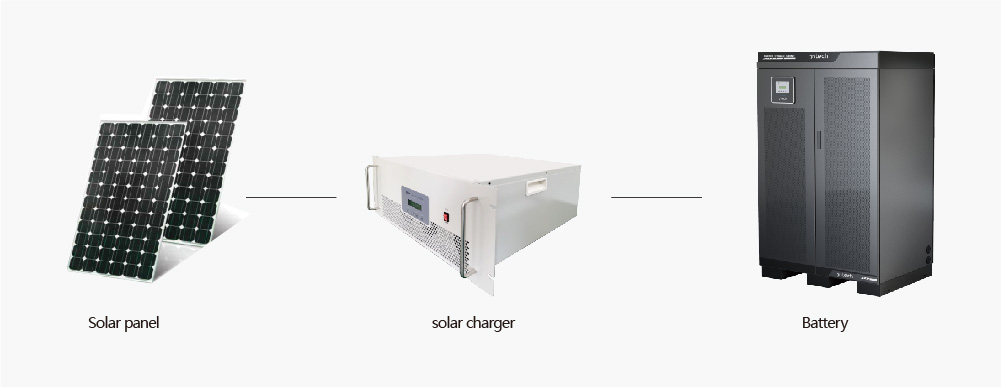

Solar Battery Charger High Voltage is designed for large-scale solar energy storage systems and direct-drive solar power supply systems. Featuring advanced MPPT algorithms and high-speed processors, it offers reliable and stable charging and output, quick response times, and high dependability.

Item No :
JNC43KH-V1
Order(MOQ) :
1
Payment :
FOB
Product Origin :
Hefei Anhui China
Color :
White
Shipping Port :
Nanjing, Ningbo, Shanghai，Shenzhen，Guangzhou
Lead Time :
7 days
Weight :
28kg

Inquire Now

Product categories

New Products

Product Details

Solar Battery Charger High Voltage

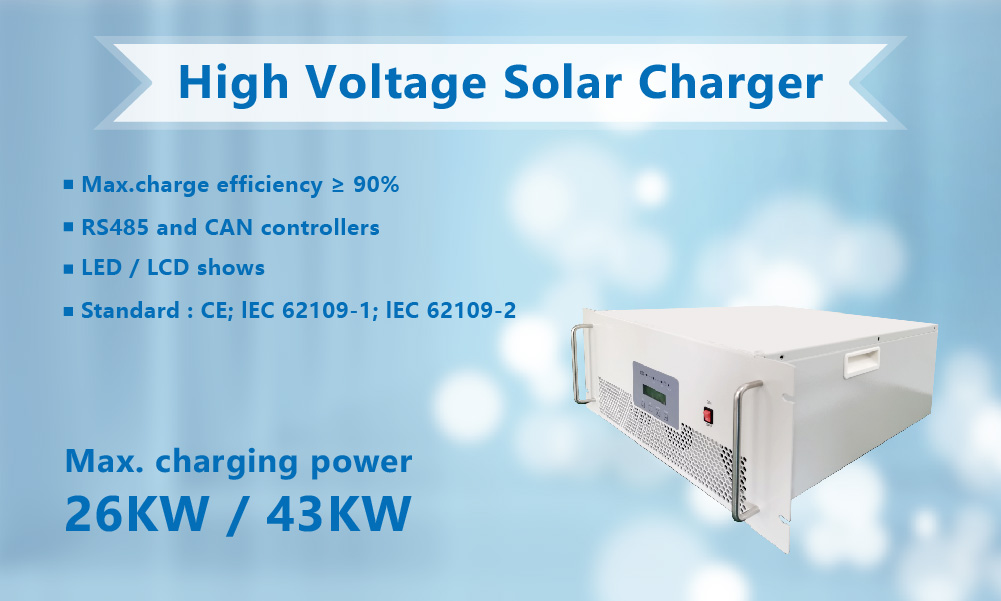

26-43kW Solar Battery Charger High Voltage

The MPPT control algorithm utilized in the solar charger optimizes real-time solar panel energy output and allows for customizable battery parameters. The controller can charge the battery independently and can also be integrated with an energy storage system. Additionally, it offers remote control and parallel operation via external communication.

Features:

The high voltage solar charger Advanced MPPT tracking algorithm with over 99% efficiency.
Using IGBT as electronic switch and highefficiency mute magnetic components, high efficiency, fast response, low noise.
LCD display shows a variety of electric alparameters and can be used to customize battery parameters.
Long-lasting design featuring IP65 protection level,suitable for complex outdoor operating environments.
In addition to charging the battery, it can also power DC loads like heaters and resistive loads.
Ultra-wide input voltage range and designed for high voltage output.
Charge and discharge management can be controlled by RS485 and CAN controllers.

Model	JNC26KH-V1	JNC43KH-V1
PV Input
Max. input voltage	1000Vdc
Max. charging power	26KW	43KW
MPPT voltage range	350VDC~950VDC	550VDC~950VDC
Battery
Rated voltage	230DC	384DC
Max.charge current	100A
Max.charge efficiency	≥90%
Mechanical data
Dimension(W/H/D)(mm)	482222491mm
Weight	28Kg
Other
Protecition level	IP21
Audible Noise	<60dB
Cooling method	Forced cooling
Operating temp.	-20~+55℃
Storage temp.	-25~+70℃
Status indicator	LCD/LED
Elevation	2000m(>2000m derates operation)
Standard	CE; lEC 62109-1; lEC 62109-2
