Item No :
JNBC614100-V1Order(MOQ) :
1Payment :
FOBProduct Origin :
Hefei Anhui ChinaColor :
BLACKShipping Port :
Nanjing, Ningbo, Shanghai，Shenzhen，GuangzhouLead Time :
7 DAYSWeight :
350KG-810KG

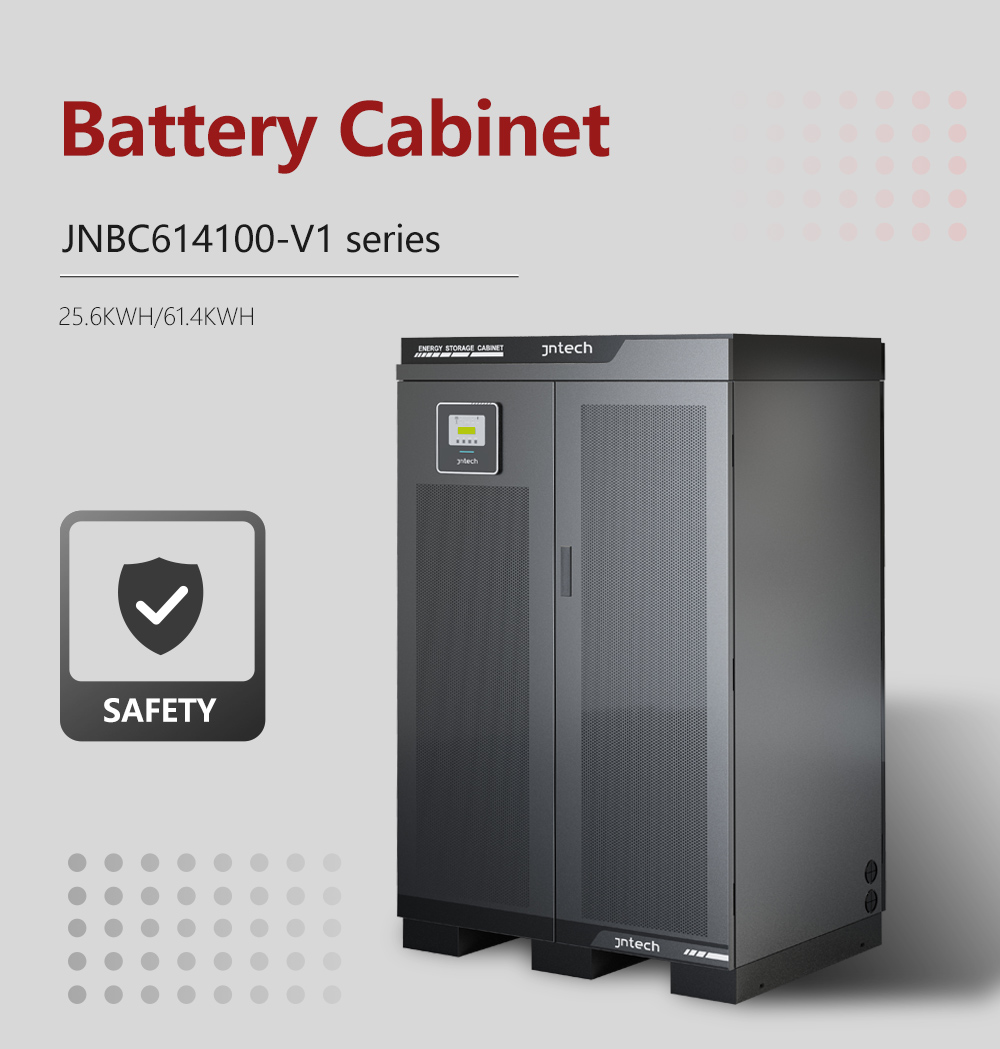

Energy Storage System Container For Commercial

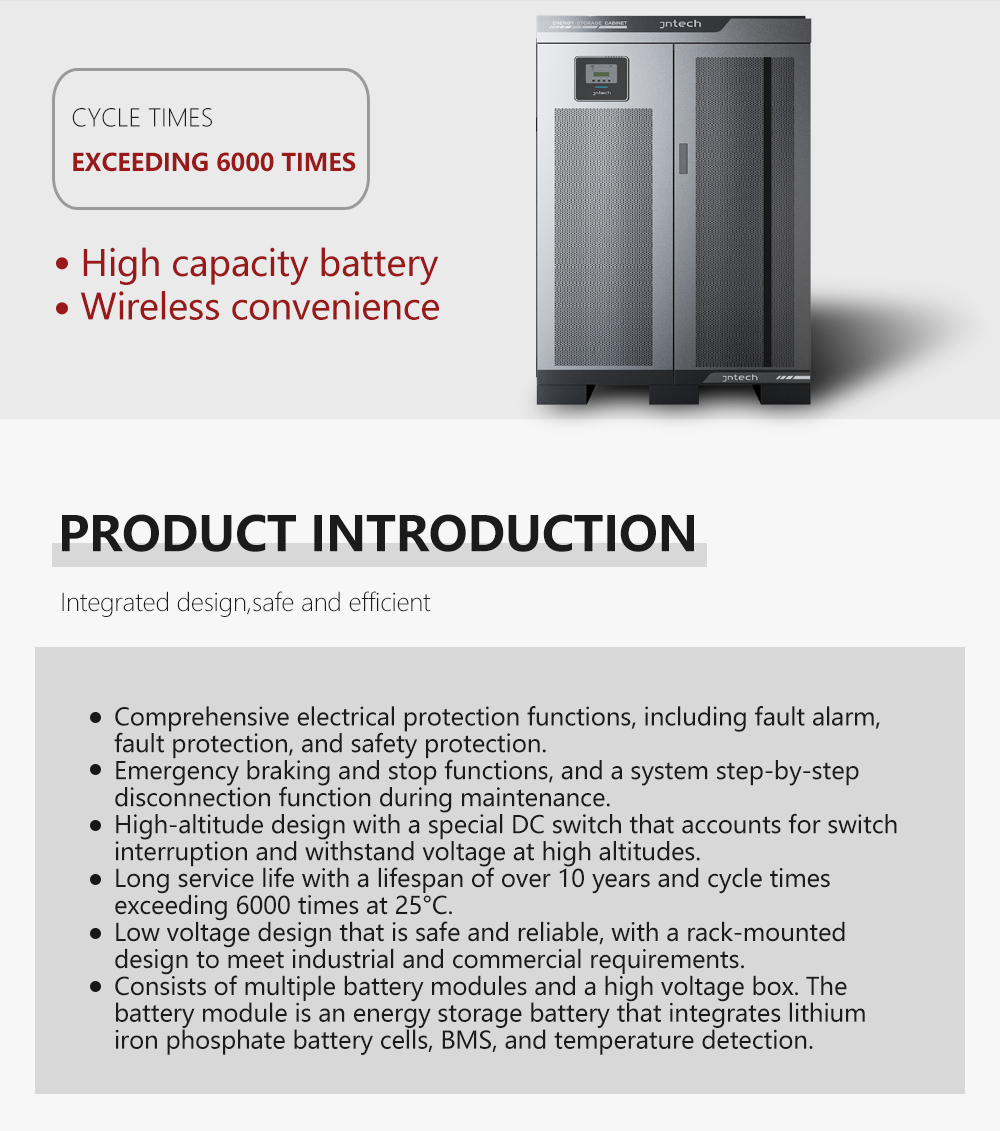

Product Introduction：
●The lithium battery cabinet Comprehensive electrical protection functions, including fault alarm, fault protection, and safety protection.
●Emergency braking and stop functions, and a system step-by-step disconnection function during maintenance.
●High-altitude design with a special DC switch that accounts for switch interruption and withstand voltage at high altitudes.
●Long service life with a lifespan of over 10 years and cycle times exceeding 6000 times at 25°C.
●Low voltage design that is safe and reliable, with a rack-mounted design to meet industrial and commercial requirements.
●Consists of multiple battery modules and a high voltage box. The battery module is an battery storage cabinet that integrates
lithium iron phosphate battery cells, BMS, and temperature detection.
| Battery Cabinet Parameters | |||
| Model | JNBC256100-V1 | JNBC614100-V1 | |
| Rated capacity | 100Ah | 100Ah | |
| Rated voltage | 256V | 614.4V | |
| Rated energy | 25.6kWh | 61.4kWh | |
| Battery type | LiFePO4 | ||
| Max. continuous charge current | 100A (1C) | ||
| Max. continuous discharge current | 100A (1C) | ||
| Voltage range | 224-292VDC | 625--646VDC | |
| Operating temperature | Charge 0~45℃，Discharge -25~55℃ | ||
| Storage temperature | -20~60℃ | ||
| Box size | 777*1428*560mm | 1056*1630*777mm | |
| Weight | 350kg | 810kg | |
| Cooling method | Forced cooling | ||
| Protecition level | IP21 | ||
| Functional protection | Undervoltage, overvoltage, overcurrent, temperature, short circuit | ||
| Installation method | Rack insert | ||
| Cycle life | >4000 times(80%DOD)、>7000 times(70%DOD) | ||
| Interface | RS485/CAN | ||
| Elevation | ≤3000m | ||
The solar energy storage battery cabinets consists of multiple battery modules and a high voltage box. The battery module is an energy storage battery that integrates lithium iron phosphate battery cells, BMS, and temperature detection.
The High Voltage Solar Charger is designed for large-scale solar energy storage systems and direct-drive solar power supply systems. Featuring advanced MPPT algorithms and high-speed processors, it offers reliable and stable charging and output, quick response times, and high dependability.
Battery Storage System Container is a versatile energy storage system that can be integrated with various renewable energy sources. CESS is composed of lithium ion battery modules, power electronics, and thermal management system, all of which are housed in a standard shipping container. The system is designed to provide energy storage solutions for grid-tied and off-grid renewable energy applications such as solar, wind, and hydro power.
The 12-20kW Solar Storage Integrated Machine is for industry and commerce.that combines solar power generation and energy storage systems. It integrates the functions of solar power generation, energy storage, output regulation, and power dispatch, to provide a comprehensive and efficient solution for clean energy.
The industrial and commercial energy storage system refers to the storage of electrical energy in batteries or supercapacitors to provide power stability and energy storage services, which are widely used in the industrial, commercial and public sectors.
Solar Battery Storage System Container is a versatile energy storage system that can be integrated with various renewable energy sources. CESS is composed of lithium-ion battery modules, power electronics, and thermal management system, all of which are housed in a standard shipping container. The system is designed to provide energy storage solutions for grid-tied and off-grid renewable energy applications such as solar, wind, and hydro power.
Container Energy Storage System (CESS) is a versatile energy storage system that can be integrated with various renewable energy sources. CESS is composed of lithium ion battery modules, power electronics, and thermal management system, all of which are housed in a standard shipping container. The system is designed to provide energy storage solutions for grid-tied and off-grid renewable energy applications such as solar, wind, and hydro power.
Industrial and Commercial Energy Storage Container is a versatile energy storage system that can be integrated with various renewable energy sources. CESS is composed of lithium-ion battery modules, power electronics, and thermal management system, all of which are housed in a standard shipping container. The system is designed to provide energy storage solutions for grid-tied and off-grid renewable energy applications such as solar, wind, and hydro power.
