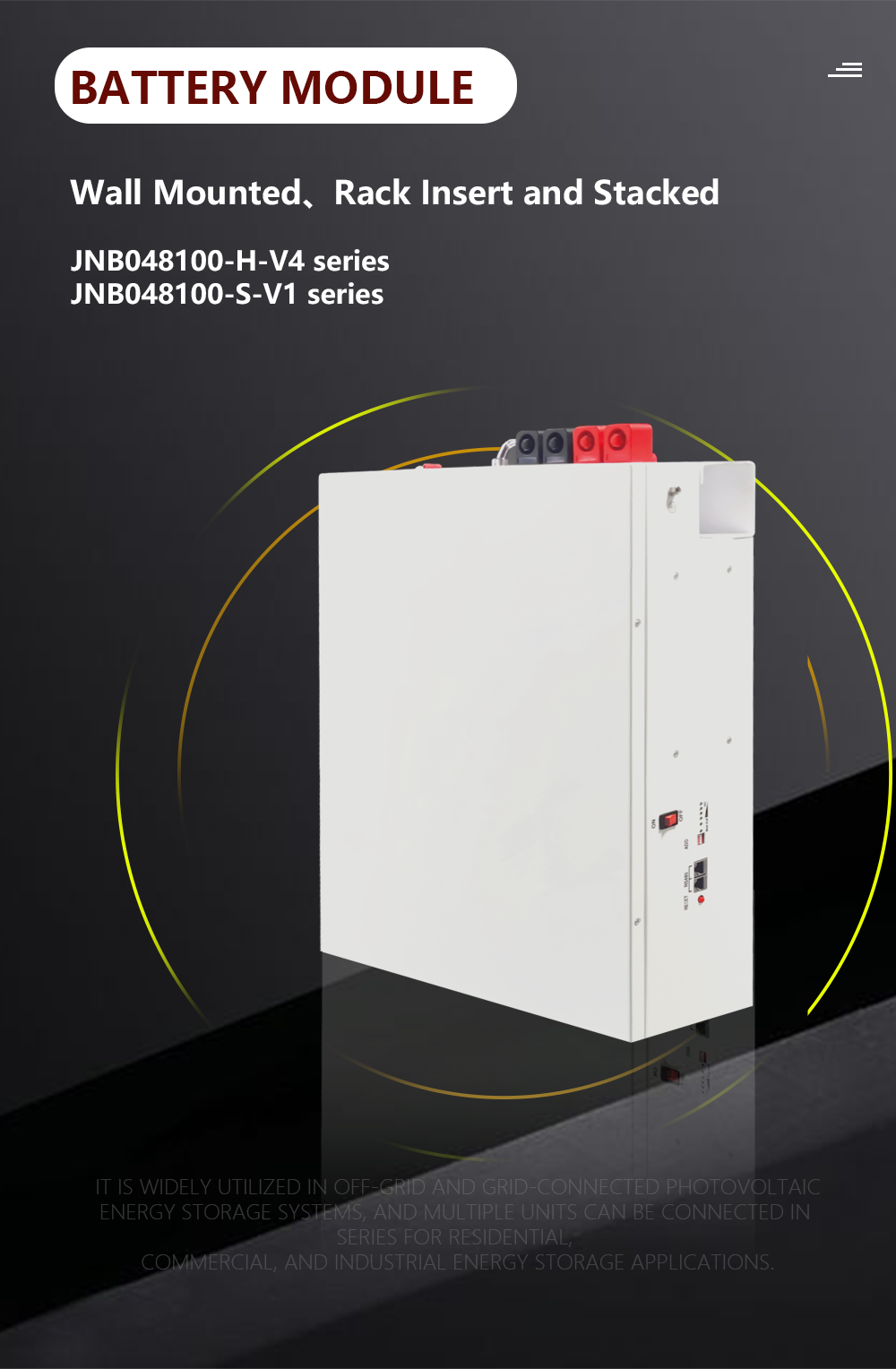

100Ah Solar Storage Battery Lithium Iron Solar Cells

Product Introduction：

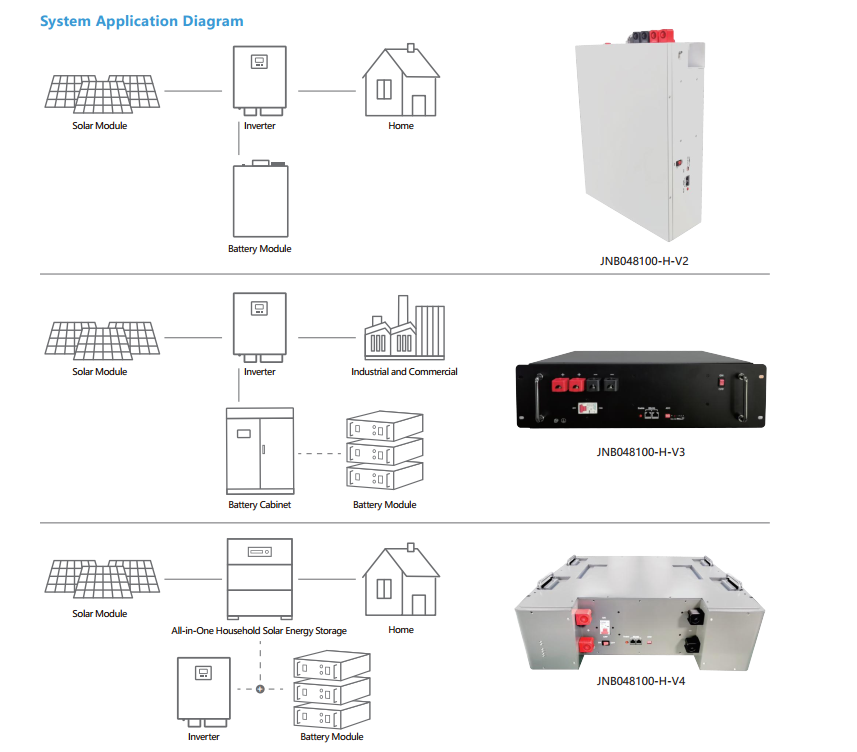

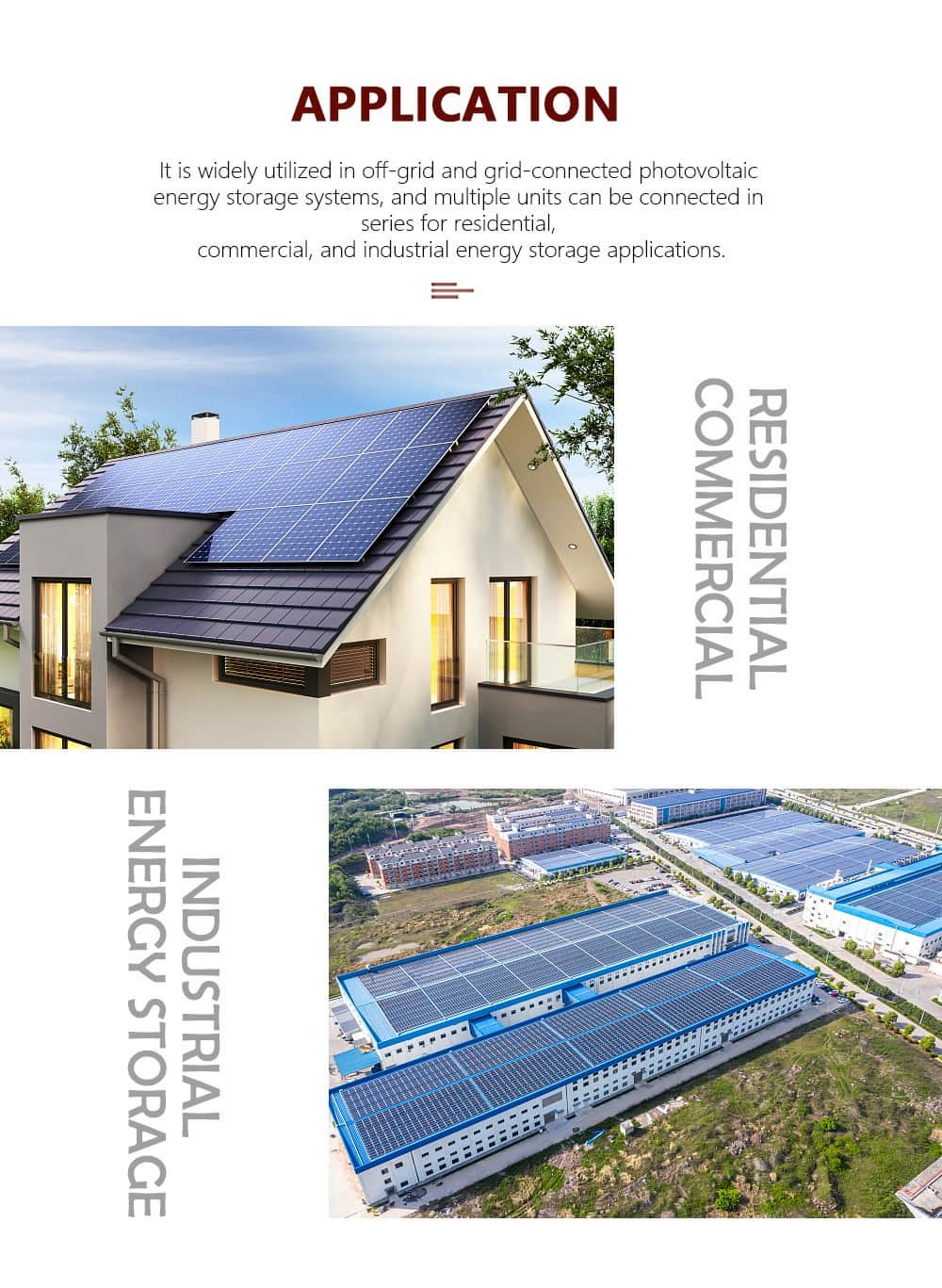

This energy storage battery widely utilized in off-grid and grid-connected photovoltaic energy storage systems, and multiple units can be connected in series for residential, commercial, and industrial energy storage applications.

Features:

●Uses lithium iron phosphate battery for increased

safety and prolonged cycle life.

●Advanced BMS with three-level protection for

comprehensive security.

●Modular design with automatic operation capabilities.

●Offers customized solutions for residential,

commercial, and industrial energy storage systems.

●Low-voltage design to meet safety and reliability

requirements for household use

●Scales easily by connecting up to 16 units in parallel.

Battery Module Parameters
Model	JNB048100-H-V2	JNB048100-H-V3	JNB048100-H-V4
Rated capacity	100Ah
Rated voltage	51.2V
Rated energy	5.2kWh
Battery type	LiFePO4
Max. continuous charge current	100A (1C)

Max. continuous discharge current	100A (1C)
Voltage range	40~60VDC
Operating temperature	Charge 0~45℃，discharge -25~55℃
Storage temperature	-20~60℃
Box size	610454157mm	580490162mm	596532195mm
Weight	50kg	50kg	55kg
Cooling method	Natural air cooling
Protecition level	IP30
Functional protection	Undervoltage, overvoltage, overcurrent, temperature, short circuit

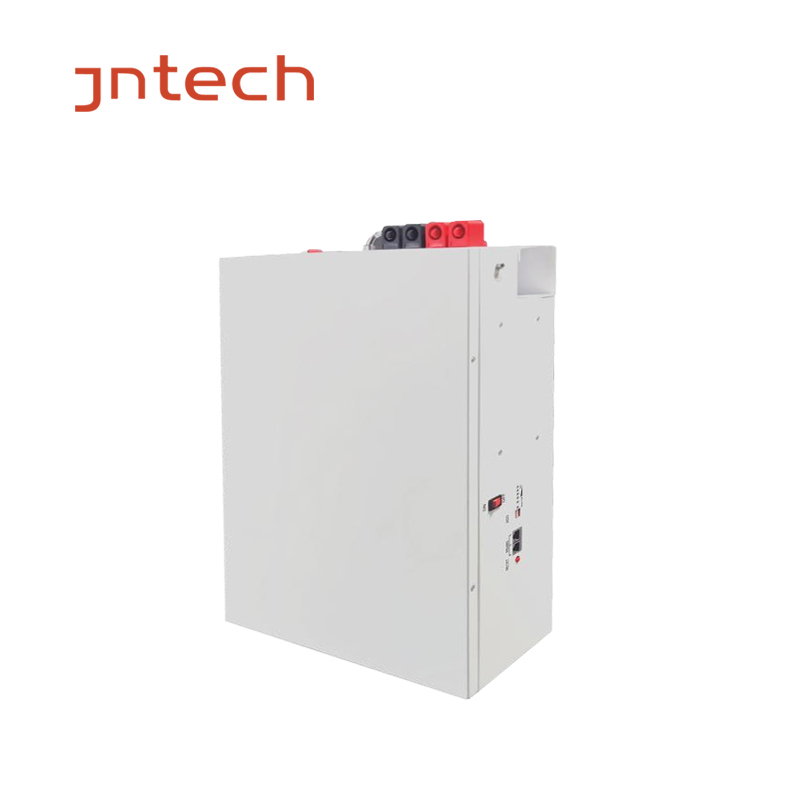

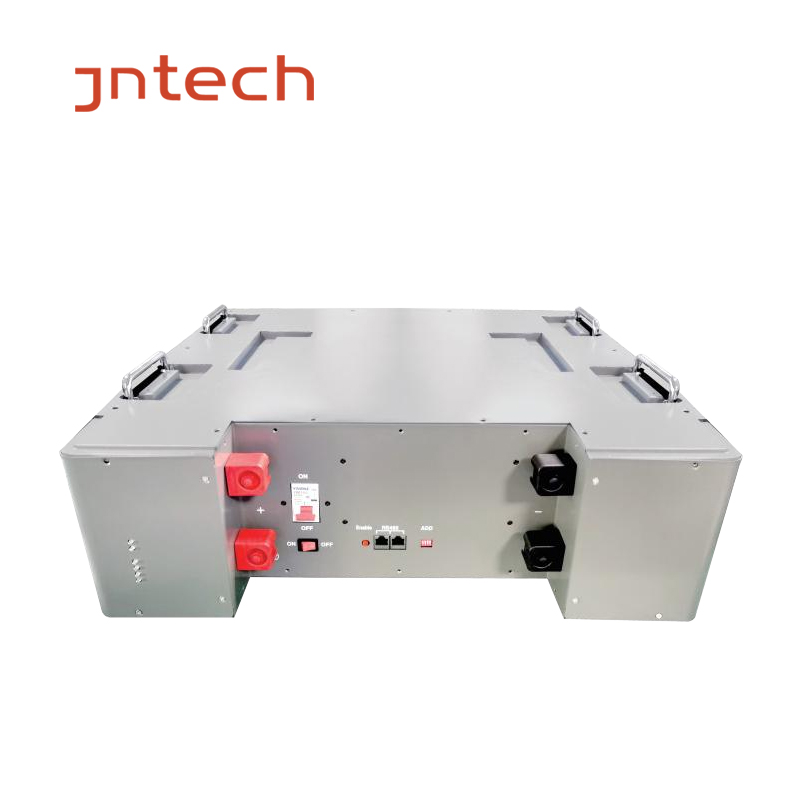

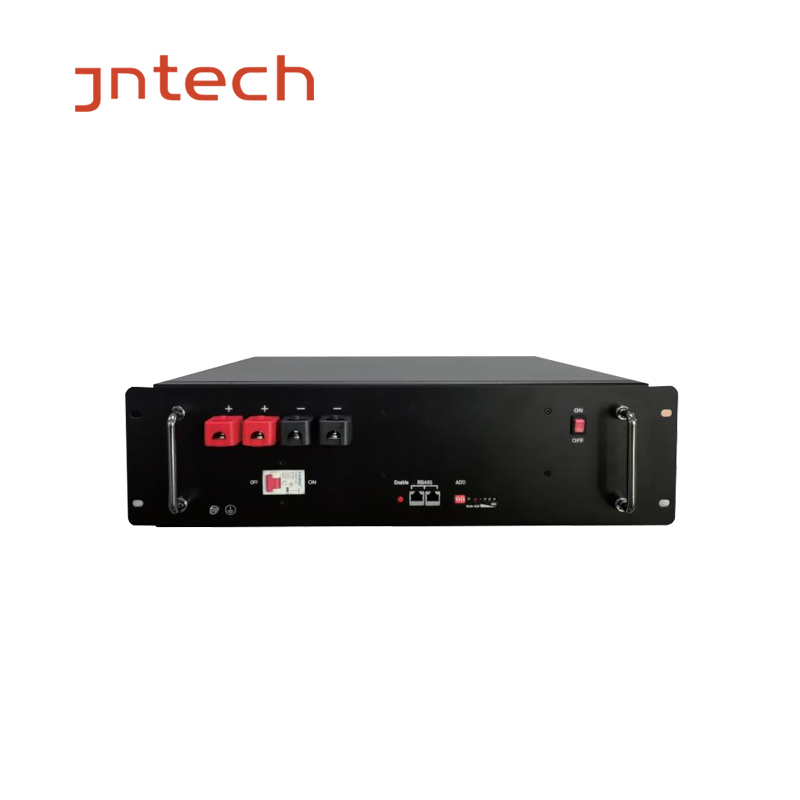

Installation method	Wall mounted	Rack insert	stacked
Cycle life	>4000 times(80%DOD), >7000 times(70%DOD)
Interface	RS485/CAN
Elevation	≤3000m
